7 inch Android Industrial Panel PC
Parameters
| Product model | WAR-070C(R)-SP10 |
| Basic parameters | CPU：Quad-core Cortex®-A9 architecture，frequency 1.4GHzMemory：1GB DDR3Flash：8GB NandFlash |
| Display screen | Size：7 inchResolution：1024×600Wide-temperature type，16000k colors or 24-bit true colorsLED backlight：lifetime > 25000 hours |
| Touch screen | Capacitance/Resistance touch screen |
| Hardware interface | 4 channel 3-wire RS-232 serial port（COM1,COM2,COM3,COM4）2 channel RS-485（COM1、COM2）multiplexing with RS-232 (COM1、COM2) ( isolated as optional）1 channel isolated CAN bus.（optional）1 channel USB device interface, support ADB connect to PC to exchange data and debug application.2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel SD/MMC slot,support mini SD/MMC .1 channel 3.5mm earphone output interface.1 channel WIFI module .（optional）DC12V~24V, industrial power solution，higher reliability.Built-in WIFI , Bluetooth module .（optional） |
| Attention | When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication. |
| OS | Android 4.4.2/Android 5.1 |
| Defend degree | IP65 (front panel) |
| Working environment | power：DC 12V-24V （24V as recommendation)working Temperature：-10~55℃ storage temperature：-20~80℃working humidity：10～90%RH |
| Size | shell structure：plasticpanel size：206.00×142.00 （mm）trepanning size：195.6×131.6 （mm） |
| Application area | industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment. |
| Software support | Support Eclipse、Android Studio、QT Creator、Visual Studio 2015/2017 development，support JAVA/C/C++/C# ,etc .Easy change the user-defined splash screen. |
Interface definition
| 1 CANL | 2 CANH |
| 3 GND | 4 COM3-RX of RS-232 |
| 5 COM3-TX of RS-232 | 6 COM4-RX of RS-232 |
| 7 COM4-TX of RS-232 | 8 COM2-485B |
| 9 COM2-485A | 10 GND |
| 11 COM1-485B | 12 COM1-485A |
2.1 RS-232 interface
4 channels，support the highest-level baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485.
2.2 RS-485 interface
The corresponding port in Android system is COM1、COM2. And COM1/COM2 is a multiplexing of COM1/COM2 of RS-232 interface. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .
2.3 CAN Bus interface
The function of Can-bus interface is optional. Also, without 120 ohm(Ω) terminal resistance inside, pls specify once in need .

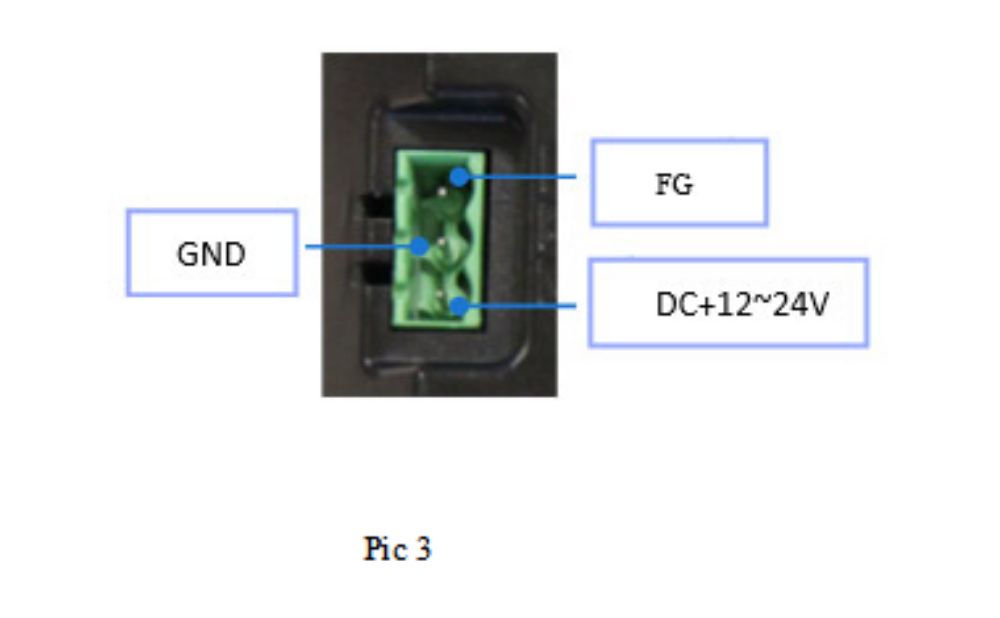

2.4 Power interface
Exterior size
Exterior size：206×142（mm） Trepanning size：195.6×131.6（mm）
