7 inch Linux Industrial Panel PC
Parameters
| Product model | WLX-070R-AP20 |
| Basic parameters | CPU: Cortex -A8 architecture ; Frequency 1.0GHZMemory: 512MB DDR3Flash：256MB NandFlash |
| Display screen | Size：7 inchResolution：800×480Wide-temperature type，64K colors or 260K colorsLED backlight：lifetime > 25000 hours |
| Touch screen | 4-wire resistance touch screen（driver inside） |
| Hardware interface | 4 channel isolated 3-wire RS-232 serial port（COM1,COM2,COM3，COM4），2 channel（COM1、COM2）is multiplexing of RS-485 bus interface.1 channel isolated CAN bus.（optional）1 channel built-in WIFI module .（optional）1 channel USB device interface2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc.1 channel 100M Ethernet interface.1 channel SD/MMC slot,support SD/MMC card .1 channel 3.5mm audio output interface.1 channel DC12V~24V，industrial power solution，higher reliability. |
| Attention | When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication. |
| OS | Linux |

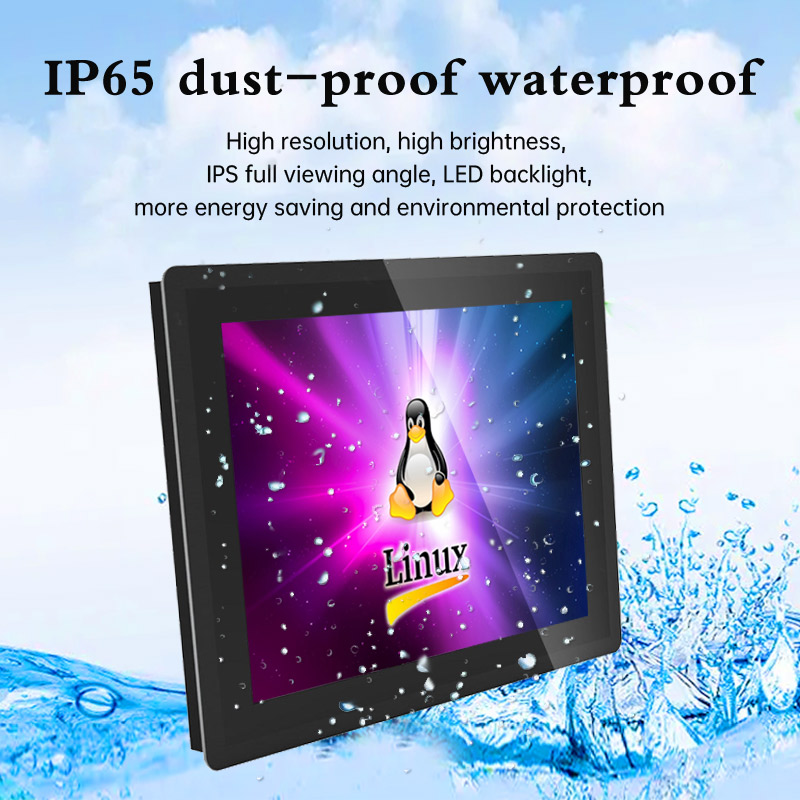

| Defend degree | IP65 (front panel) |
| Working environment | power：DC 12~24V ，600mAworking temperature：-10~60℃ storage temperature：-20~80℃working humidity：10～90%RH |
| Size | shell structure：plasticpanel size：206×142（mm）trepanning size：196×132（mm） |
| Application area | industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application.Support CAN bus network deployment. |
| Software support | Flash power-down protection function.QT Creator（QT C++）development, easy to use other software flexibly.Easy change the user-defined splash screen.Support display screen rotation (degree: 0/90/180/270) |
Interface definition
| 1. CANL | 2. CANH |
| 3. GND | 4. COM3-RX of RS-232 |
| 5. COM3-TX of RS-232 | 6. COM4-RX of RS-232 |
| 7. COM4-TX of RS-232 | 8. COM2-485B |
| 9. COM2-485A | 10. GND |
| 11. COM1-485B | 12. COM1-485A |
2.1 RS-232 interface
4 channels，support the highest-level baudrate 115200bps. The corresponding interface in Linux system is COM1 ~ COM4. Specially COM1 and COM2 have 2 output type as RS-232 and RS-485.
2.2 RS-485 interface
| The corresponding port in Linux system is COM1、COM2, and same UART port with RS-232 ( COM1/COM2), but different output type. Also, a 120 ohm(Ω ) terminal Resistance inside. |
2.3 CAN Bus interface
The function of Can-bus interface is optional. Also, a 120 ohm(Ω) terminal resistance between CAN+ and CAN- .
2.4 Power interface
Exterior size
Exterior size：206×142 （mm） Trepanning size：195.6×131.6（mm）
